FLAT PLATE STEEL MOUNT HOIST HANGE

About this Item

  • Steel Beam Mount
  • Hot Dipped Galvanized Steel
  • Built-In Dual Pipe Supports
  • Side or Center Mount

The Galvanized Flat Plate Hoist Hanger – Steel Beam Mount has an adjustable frame with built in drive pipe supports. Cable winders will fit in between the drive pipe supports. Requires no drilling or welding to install. Mount clamps to I-beam or channel. Designed for center mount or side mount. Must be used with accompanying steel mount pipe support. Hot dipped galvanized steel. Hardware included.

Specifications

Weight 41 lbs.
Material  Hot Dipped Galvanized Steel
Drive Pipe Sleeve Accepts 2" ID / 2 3/8" OD Drive Pipe
Hardware Included
Dimensions: (4") - 27.1" x  13.6" x 7.25"

$175 each for Standard 4 to 8 inch I-beam
$185 each for Standard 10 & 12 inch I-beam
 Call 318-286-9169 to order.

Aluminum Flat Plate Hoist Hanger – Wood Beam Mount

About this Item

  • Overhead Wood Beam Mount
  • Built-In Dual Pipe Supports
  • Grease Fitting Supports
    •
  • Aluminum Construction

The Aluminum Flat Plate Hoist Hanger – Wood Beam Mount is made for a dual drive pipe support lift. Install on wood beams up to 8″. (3) bolts secure hoist hanger to wood beam. Accepts industry standard 2” ID drive pipe.. Made from 6061-T6 marine grade aluminum. 19″ gap between pipe supports. Grease fitting on each pipe support. Allows for optional cable winder. Designed for center mounting and use with an aluminum pipe support. Mount hoist horizontally for maximum overhead clearance. Designed for easy installations on boat lifts. Made by BH-USA.


Specifications

Weight 20.40 lbs.
Dimensions 25 1/2" x 24" x 8 5/8"
Mounting Bolt Size 1/2"
Mounting Holes 3
Flange Mount Universal
Between Pipe Sleeves 19"

$230 Each
 Call 318-286-9169 to order.

Aluminum Flat Plate Hoist Hanger – Aluminum Beam Mount

About this Item

  • 4″ Aluminum I-Beam Mount
  • 6061-T6 Marine Grade Aluminum
  • (2) Grease Fittings on Pipe Supports
  • Dual Pipe Supports Built-In
  • Overhead Center Mount

The Aluminum Flat Plate Hoist Hanger – Aluminum Beam Mount is made for a dual drive pipe support lift. Install on 4″ overhead aluminum i-beams. Accepts 2″ ID / 2 3/8″ OD Drive Pipe. Drill (4) holes into the flange of the hanger directly under the i-beam, then mount the hoist. Made from 6061-T6 marine grade aluminum. Grease fitting on each pipe support. Allows for optional cable winder. Designed for center mounting and use with an aluminum pipe support. Mount hoist horizontally for maximum overhead clearance. Designed for easy installations on boat lifts. Made by BH-USA.


Specifications

Dimensions 25 1/2" L x 24" W (Mounting Flange) x 4" Tall
Weight 15.85 lbs.
Material 6061-T6 Marine Grade Aluminum
Accepts 2" ID / 2 3/8" OD Drive Pipe
Hoist Mount Horizontal
I-Beam Flange 4"
Grease Fitting Size: 1/4"
Grease Fittings: 2 - (Each Support)

$240 Each
 Call 318-286-9169 to order.

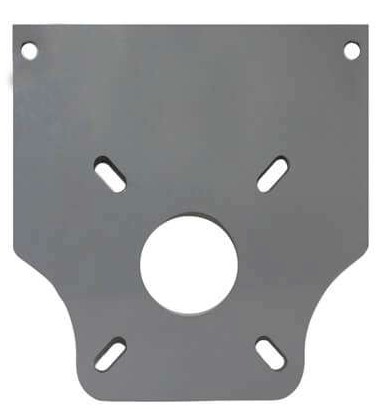

Steel A-Drive Hoist Hanger – Wood Beam Mount

About this Item

  • Wood Mount
  • Replaces Flat Plate Hoist
  • Laser Cut
  • Powder Coated
  • Marine Enviroment Protected
  • Flat Plate Mounting Pattern

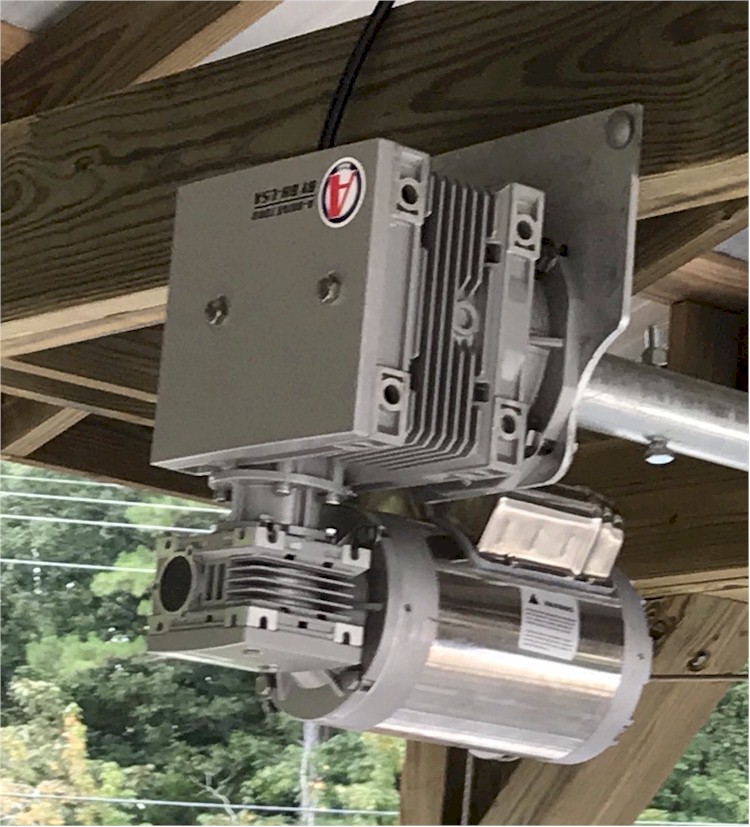

The Steel A-Drive Hoist Hanger – Wood Beam Mount allows you to mount a BH-USA A-Drive in more traditional overhead lifts using Flat Plate Hoists. This innovative mount follows the same hole pattern of a traditional flat plate hoist. Made from the same back plate material as flat plate hoists. The hole pattern allows you to replace an existing flat plate hoist or even use in new lifts with more traditional overhead lift rigging. Laser cut and precision machined plate mount gives a clean look, then powder coated for protection in the marine environment. The A-Drive Flat-Plate Hoist Mount allows you to mount an A-Drive on a wood beam. Mount also still follow industry standard flange mounting guidelines.

Available in the mount only or a complete kit. Complete kit has everything you need to replace a flat-plate hoist including fasteners and drive shaft. Hole mounts line up to flat-plate hoists that are installed following the industry recommended vertical mount. Horizontal mounted hoists will require drilling extra holes in the wood beam. The A-Drive Flat-Plate Hoist Mount allows for easy adjustment to preexisting pipe supports.


Specifications

Dimensions 11.25" x 11.75"
Drive Shaft Fits 2" ID 2 3/8" OD Drive Pipes
Kit Includes Drive Shaft, A-Drive Mount, Mounting Fasteners
Rating Not factory rated, not intended for load
Item Weight 6 / 8 / 10 Pounds (Depending on Which Feature You Choose)
Warning Must use all 4 bolt holes to mount flange to plate
Mounting Suggestions Center Mount Suggested
$45 Each Mount Only (Galvanized or Powder Coated)
 Call 318-286-9169 to order.

Aluminum A-Drive Hoist Hanger – Wood Beam Mount

About this Item

  • Wood Mount
  • Aluminum Construction
  • 3 Adjustable Mounting Holes
  • Built-in Dual Pipe Support
  • Fits up to 8″ Tall Beams

The Aluminum A-Drive Hoist Hanger – Wood Beam Mount allows a BH-USA A-Drive direct drive hoist to mount to an overhead boat lift using wood beams. The large, oversized adjustable plates will fit up to 8″ tall wood beams and allows 3 bolts to secure the hoist hanger to the wood beams. The aluminum flange mount plate will fit both A-Drive direct drives and follows industry flange mounting guidelines. Built in dual pipe support for industry standard 2″ ID boat lift drive pipe. The dual pipe support allows for an optional cable winder. 1/2″ mounting holes. 19″ between pipe supports.

Specifications

Weight 27 lbs.
Dimensions 27" x 16" x 10"
Mounting Bolt Size 1/2"
Mounting Holes 3
Flange Mount Universal
Between Pipe Sleeves 19"

$240 Each
 Call 318-286-9169 to order.

Aluminum A-Drive Hoist Hanger – Aluminum Beam Mount

About this Item

  • Mounts to I-Beams
  • Hardware Included
  • Welded Dual Pipe Supports
  • Fits all A-Drives

The Aluminum A-Drive Hoist Hanger – Aluminum Beam Mount allows the installation of a BH-USA A-Drive direct drive to be mounted to an overhead aluminum i-beam boat lift. Sides onto the flange of the I-beam. The guides hold the mount in place while drilling permanent holes to mount the hanger where you want on the aluminum I-beam. The mount plate is welded onto the dual pipe support. Follows industry flange mounting standards. Aluminum dual-pipe support accepts a 2″ ID 2 3/8″ OD Sch. 40 boat lift drive pipe. Easy to reach grease fittings. Accepts cable winders. Over 19″ of cable wrapping space. Made from 6061-T1 marine-grade aluminum. Low profile. Hardware included.

Hardware Includes:

(8) #21218 – 1/2″ Stainless Steel Nuts
(4) #12309 – 1/2″ x 1 3/4″ Stainless Steel Hex Head Bolts
(8) #33872 – 1/2″ Stainless Steel Lock Washers
(4) #12311 – 1/2″ x 2 1/2″ Stainless Steel Hex Head Bolts
(8) #21234 – 1/2″ Stainless Steel Flat Washers

$250 Each
 Call 318-286-9169 to order.
